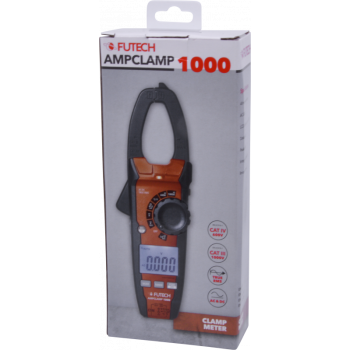

Ampclamp Futech 1000

Reference: 28-431000

Last items in stock


Privacy policy




Returns policy

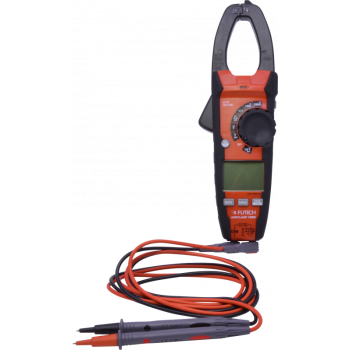

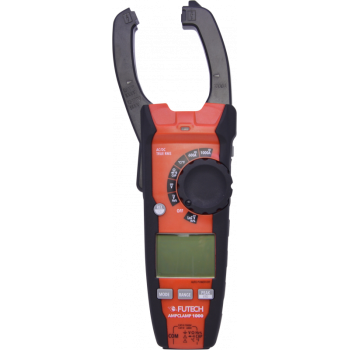

Digital TRUE RMS multimeter with current clamp off Cat. III - 1000V / Cat. IV - 600V for accurate measurements of all major electrical units (V, A, Ohm, F, °C). The current clamp can be opened up to 34 mm. The unit is equipped with a built-in flashlight and has a large display (6000 counts).

Category CAT III 1000V / CAT IV 600V


Voltage DC/AC max. 1000V

Current DC/AC max. 1000A

Setting range Automatic

Display LCD, 6000 counts

Flashlight: LED

Resistance: max. 60MΩ

Capitance: 100mF

Frequency: 9,999Hz - 99,99kHz

Diode check: 0.3 mA typical; Open circuit 3.2V DC

Continuity check: ≤ 50 Ω

Temperature range NOT

Data hold NOT

Measurement rate: 2 /sec.

Maximum humidity: 80%

Input impedance: 10MΩ (VDC & VAC)

Auto power off: 30 min.

Duty cycle: 10.0% - 90.0%

Clamp size: 35 mm

Batteries: 3x 1,5V AAA

Weight of device: 0,32 kg
